Did you know that there is a technology that can instantly turn liquids into powders or granules? That technology is spray drying, a modern method that is now a mainstay in various industrial sectors, ranging from food, pharmaceuticals, chemicals, to cosmetics. This spray drying process can minimize the production time of powdered raw materials in large quantities while keeping product quality under control. If you are in one of these industries and are looking for an efficient and reliable drying solution, the Spray Dryer Machine from PT Metro Mesin Mendunia is the right answer to increase your productivity and product quality.

A Spray Dryer Machine is a device designed to convert liquids into powder or dry particles through a spray drying process. This process involves spraying the liquid to be dried into a hot air stream. The contact between the very small liquid droplets and the hot air causes rapid water evaporation, leaving behind solid particles that are then separated from the air stream. This technology can be used to dry various types of solutions, emulsions, and suspensions into powder products.

------

Working Principle of the Spray Dryer Machine from PT Metro Mesin Mendunia

Illustration of the Spraying Process When Drying Materials Using Spray Dryer Machine
(Photo: Freepik)

The basic working principle of the Spray Dryer Machine lies in the simultaneous heat and mass transfer. The liquid material to be dried is pumped and sprayed through a nozzle into a drying chamber through which hot air flows. This spraying produces very small liquid droplets, which accelerates the evaporation process after being exposed to the hot air. This hot air provides the energy needed to evaporate the solvent (usually water) from the liquid droplets. As evaporation occurs, solid particles form and separate from the water vapor and hot air. These dry particles are then carried to a separation system using a separator called a Cyclone. After the process is complete, the dry particles are collected as the final product in powder form.

Numerous Applications of the PT Metro Mesin Mendunia Spray Dryer Machine in Various Industries

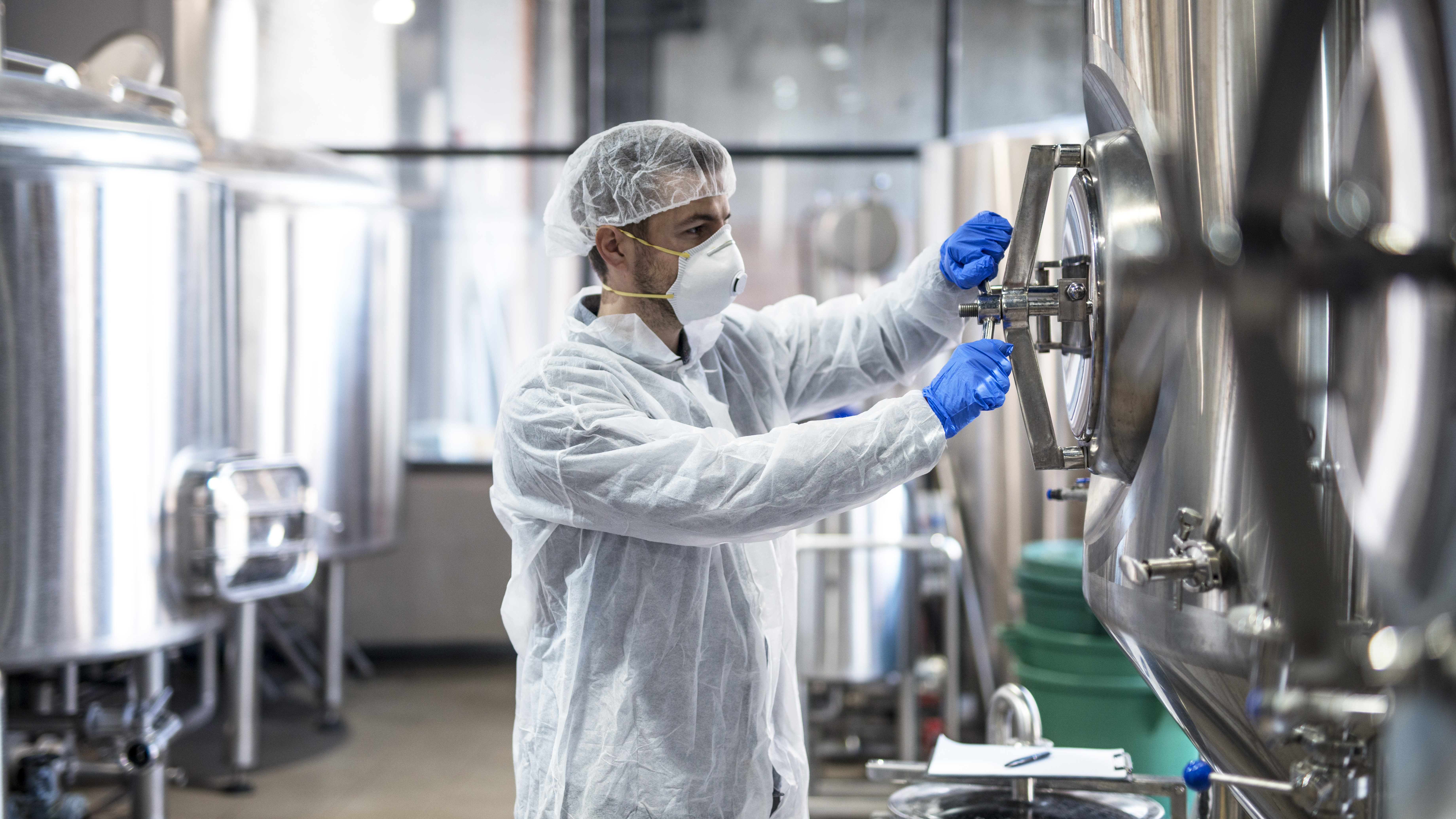

Illustration of the Use of Spray Dryer Machines on an Industrial Scale
(Photo: Freepik)

The advantages of the Spray Dryer Machine in producing high-quality powder quickly and efficiently make it a much-needed solution in various industries as follows:
• Food Industry: Production of milk powder, instant coffee, instant tea extract, protein powder, food flavorings, food coloring, and various other food additives.
• Pharmaceutical Industry: Drying of herbal extracts, vitamins, antibiotics, vaccines, and other active pharmaceutical ingredients into powder form that is easy to process and package.
• Chemical Industry: Production of various types of chemical powders, catalysts, pigments, and other additive materials.
• Cosmetic Industry: Drying of plant extracts, cosmetic dyes, and other active ingredients into powder form for product formulation.

Superior Specifications of the PT Metro Mesin Mendunia Spray Dryer Machine

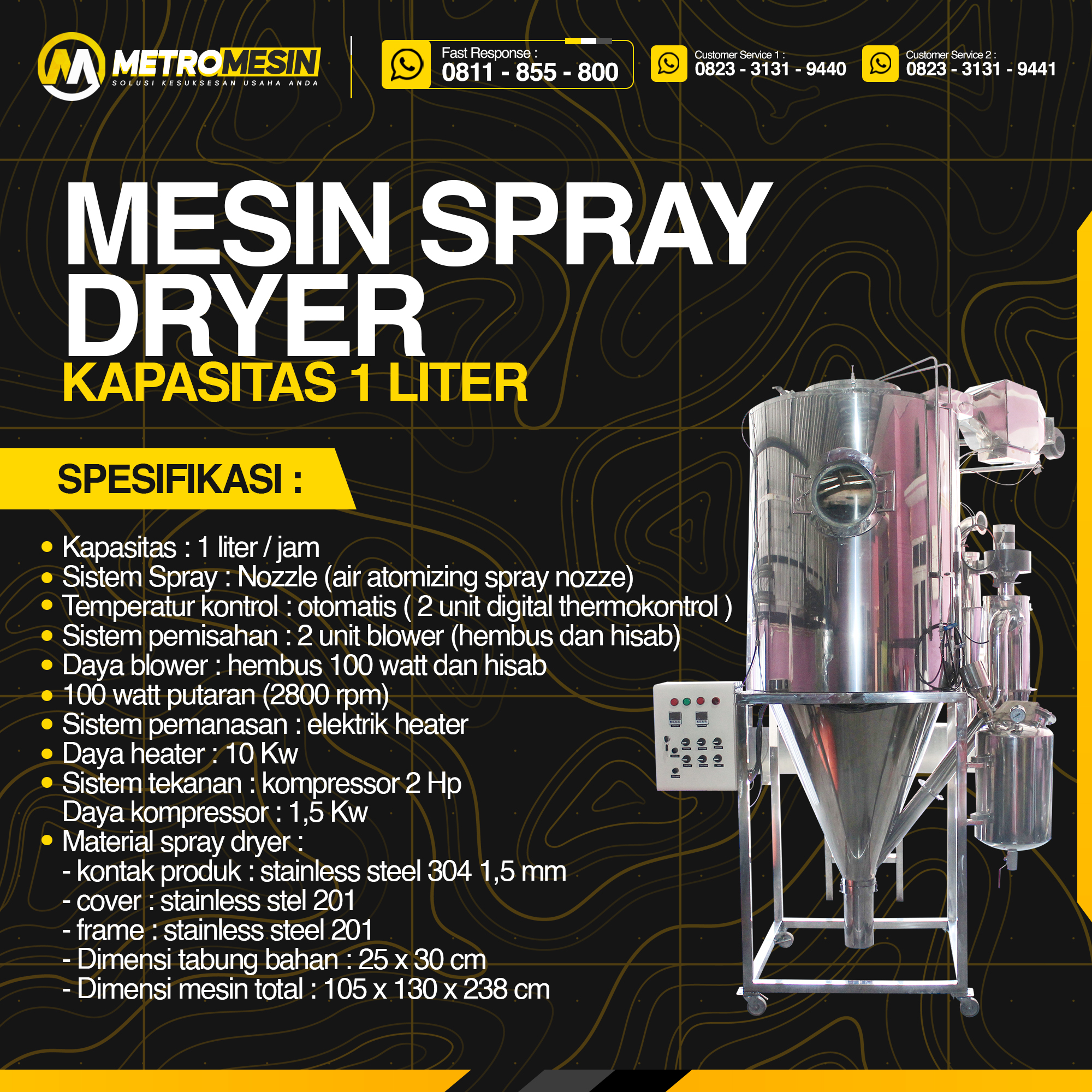

Superior Specifications of Spray Dryer Machine from PT Metro Mesin Mendunia
(Photo: PT Metro Mesin Mendunia)

PT Metro Mesin Mendunia offers a Spray Dryer Machine with specifications designed for optimal performance and durability:
• Capacity: 1 liter / hour
• Spray System: Nozzle (air atomizing spray nozzle)
• Temperature Control: Automatic with 2 digital thermocontrol units
• Separation System: 2 blower units (100 Watt blowing and 100 Watt suction with a rotation of 2800 rpm)
• Heating System: 10 Kw electric heater
• Pressure System: 2 Hp compressor with 1.5 Kw power
• Spray Dryer Material: Stainless Steel 304 1.5 mm
• Spray Dryer Material (Cover & Frame): Stainless Steel 201
• Material Tube Dimensions: 25 x 30 cm
• Total Machine Dimensions: 105 x 130 x 238 cm

PT Metro Mesin Mendunia understands that every production process and business have its own needs. Therefore, we not only provide Spray Dryer Machines with the standard specifications offered, but also accept requests for machine customization according to your specific requirements. Do you need a larger production capacity or modifications to the control system? Our team of experts, located at No. 421, Raya Curungrejo Street, RT.008/RW.002, North Boro, Curung Rejo Village, Kepanjen District, Malang Regency, East Java, is ready to collaborate with you to design and manufacture the Spray Dryer Machine that is most optimal for your business application. Beyond that, PT Metro Mesin Mendunia is also fully committed to after-sales service, which includes machine installation, usage training, and even machine repair services.
